SAE液压法兰
SAE法兰焊管
结构类型：SAE-法兰焊管
尺寸范围：1/2″~5″（DN13~DN127）
压力等级：3000psi、6000psi
材质牌号：20#、304/304L, 321、316/316L等
制造工艺：进料→复检→下料→加热→模锻→热处理→钻孔→机加工→打标→检验→装箱→发运
产品标准：SAE J518C、JB/ZQ4187、ISO 6162 、ISO 6164
13564974168 周经理

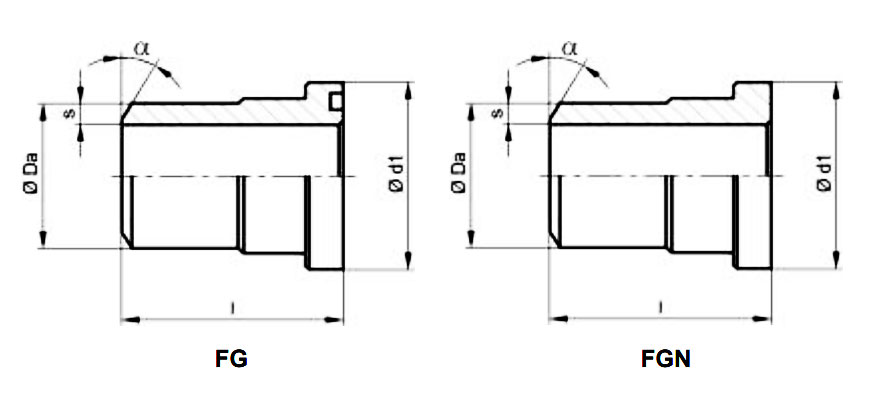

公称規格 | 最高工作压力 Max. Pressure | 型式代号 | 尺寸 | 配用O型密封圈 Macthed O-Ring | Weight 重量 | ||||
mm | in. | bar | Dax s | d1 | I | a | kg | ||
3000 psi | |||||||||
13 | 1/2" | 350 | SFJ3001 / SFJN 3001 | 20×3 / 21.3×2.6 / 22×2 | 30 | 30 | 35° | 18.7 ×3.55 | 0.06 |
19 | 3/4" | 350 | SFJ3002 / SFJN 3002 | 25x3 / 26.9×3.6 | 38 | 35 | 35° | 25.0×3.55 | 0.09 |
25 | 1" | 350 | SFJ3003 / SFJN 3003 | 30×4 / 33.7×3.2 / 35×4 | 44.3 | 40 | 35° | 32.9 × 3.55 | 0.12 |
32 | 1 1/4" | 250 | SFJ3004 / SFJN 3004 | 42.4x3.2 / 38.4x4 / 42.4×5 | 50.7 | 45 | 35° | 37.7 ×3.55 | 0.2 |
38 | 1 1/2" | 200 | SFJ3005 / SFJN 3005 | 48.3x3.2 / 42.4×3.2 / 38×4 | 60.2 | 50 | 35° | 47.2 × 3.55 | 0.26 |
51 | 2" | 200 | SFJ3006 / SFJN 3006 | 60.3×5.6 / 42.4×3.2 / 42×3.0 | 71.3 | 60 | 35° | 56.7 ×3.55 | 0.58 |
64 | 2 1/2" | 160 | SFJ3007 / SFJN 3007 | 76.1×3.6 /76.1×7.1 | 84 | 65 | 35° | 69.4 × 3.55 | 0.65 |
76 | 3" | 100 | SFJ3008 / SFJN 3008 | 88.9×3.6 / 76.1×3.6 / 76.1×7.1 | 101.5 | 70 | 35° | 85.3 × 3.55 | 0.98 |
89 | 3 1/2" | 35 | SFJ3009 / SFJN 3009 | 88.9×3.6 / 76.1×3.6 / 114.3x3.6 | 114.1 | 80 | 35° | 98.0 ×3.55 | 1.31 |
102 | 4" | 35 | SFJ3010 / SFJN 3010 | 114.3x3.6 / 88.9x3.6 / 76.1×3.6 | 126.9 | 80 | 35° | 110.7 ×3.55 | 1.55 |
127 | 5" | 35 | SFJ3011 / SFJN 3011 | 139.7x4 | 152.3 | 80 | 35° | 136.1 × 3.55 | 1.76 |
6000 psi | |||||||||
13 | 1/2" | 420 | SFJ6001 / SFJN 6001 | 16×2.5 / 20×3 / 21.3×4.5 | 31.7 | 40 | 35° | 18.7 ×3.55 | 0.08 |
19 | 3/4" | 420 | SFJ6002 / SFJN 6002 | 25x4 / 20x3 / 26.9×5.6 | 41.2 | 45 | 35° | 25.0 ×3.55 | 0.14 |
25 | 1" | 420 | SFJ6003 / SFJN 6003 | 30×4 / 25x4 / 30x4 / 33.7x7.1 | 47.5 | 50 | 35° | 32.9 × 3.55 | 0.23 |
32 | 1 1/4" | 420 | SFJ6004 / SFJN 6004 | 38×5 / 42.4×8.8 / 30×4 | 53.9 | 55 | 35° | 37.7 ×3.55 | 0.33 |
38 | 1 1/2" | 350 | SFJ6005 /SFJN 6005 | 48.3×8.8 / 38x5 / 48.3×7.1 | 63.4 | 60 | 32° | 47.2 × 3.55 | 0.58 |
51 | 2º | 350 | SFJ6006 / SFJN 6006 | 60.3×10 / 60.3×8 / 60.3×8.8 | 79.3 | 70 | 32° | 56.7 ×3.55 | 1.18 |
64 | 2 1/2" | 350 | SFJ6007 / SFJN 6007 | 76.1×12.5 / 76.1×10 / 88.9×14.2 | 107.9 | 80 | 30° | 69.4 × 3.55 | 2.35 |
76 | 3" | 350 | SFJ6008 / SFJN 6008 | 88.9×14.2 / 114.3×11 / 114.3×17.5 | 131.5 | 100 | 30° | 85.3 × 3.55 | 3.92 |
