锻钢制管件
螺纹三通 | Threaded Tee
产品类型：螺纹三通
产品规格：1/8″~4″ (DN6~DN100)
压力等级：2000#、3000#、6000#
产品材质：碳钢20#、A105；不锈钢钢F304/304L、F316/316L、F321；双相钢F51、F53、F55等；
产品特点：耐腐蚀、耐高压
连接方式：NPT(ANSI/ASME B1.20.1)、Rc、BSP、G、PT
产品标准：ASME 16.11、GB/T14383-2018
应用领域：海工装备、石油化工、核电工程、锅炉容器、船舶修造、热电机组、泵阀管路、燃气消防等领域.
13564974168 周经理

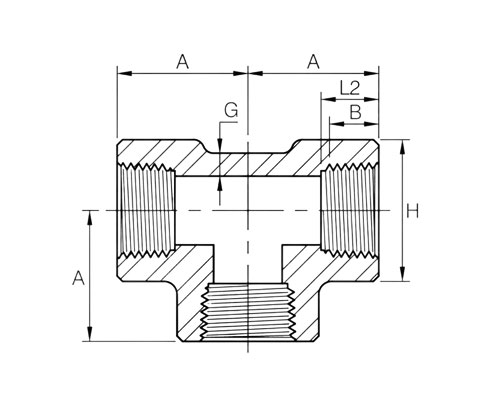

公称通径 | 螺纹长度 | 中心至端面 | 本体厚度 Body Wall | 端部外径Outside Diameter of Band | ||
DN | NPS | 完整螺纹长度 | 有效螺纹长度 | A | Gmin | H |
2000Lb | ||||||
6 | 1/8 | 6.4 | 6.7 | 21 | 3.18 | 22 |
8 | 1/4 | 8.1 | 10.2 | 21 | 3.18 | 22 |
10 | 3/8 | 9.1 | 10.4 | 25 | 3.18 | 25 |
15 | 1/2 | 10.9 | 13.6 | 28 | 3.18 | 33 |
20 | 3/4 | 12.7 | 13.9 | 33 | 3.18 | 38 |
25 | 1 | 14.7 | 17.3 | 38 | 3.68 | 46 |
32 | 1.1/4 | 17.0 | 18.0 | 44 | 3.89 | 56 |
40 | 1.1/2 | 17.8 | 18.4 | 51 | 4.01 | 62 |
50 | 2 | 19.0 | 19.2 | 60 | 4.27 | 75 |
65 | 2.1/2 | 23.6 | 28.9 | 76 | 5.61 | 92 |
80 | 3 | 25.9 | 30.5 | 86 | 5.99 | 109 |
100 | 4 | 27.7 | 33.0 | 106 | 6.55 | 146 |
3000Lb | ||||||
6 | 1/8 | 6.4 | 6.7 | 21 | 3.18 | 22 |
8 | 1/4 | 8.1 | 10.2 | 25 | 3.3 | 25 |
10 | 3/8 | 9.1 | 10.4 | 28 | 3.51 | 33 |
15 | 1/2 | 10.9 | 13.6 | 33 | 4.09 | 38 |
20 | 3/4 | 12.7 | 13.9 | 38 | 4.32 | 46 |
25 | 1 | 14.7 | 17.3 | 44 | 4.98 | 56 |
32 | 1.1/4 | 17.0 | 18.0 | 51 | 5.28 | 62 |
40 | 1.1/2 | 17.8 | 18.4 | 60 | 5.56 | 75 |
50 | 2 | 19.0 | 19.2 | 64 | 7.14 | 84 |
65 | 2.1/2 | 23.6 | 28.9 | 83 | 7.65 | 102 |
80 | 3 | 25.9 | 30.5 | 95 | 8.84 | 121 |
100 | 4 | 27.7 | 33.0 | 114 | 11.18 | 152 |
6000Lb | ||||||
6 | 1/8 | 6.4 | 6.7 | 25 | 6.35 | 25 |
8 | 1/4 | 8.1 | 10.2 | 28 | 6.6 | 33 |
10 | 3/8 | 9.1 | 10.4 | 33 | 6.98 | 38 |
15 | 1/2 | 10.9 | 13.6 | 38 | 8.15 | 46 |
20 | 3/4 | 12.7 | 13.9 | 44 | 8.53 | 56 |
25 | 1 | 14.7 | 17.3 | 51 | 9.93 | 62 |
32 | 1.1/4 | 17.0 | 18.0 | 60 | 10.59 | 75 |
40 | 1.1/2 | 17.8 | 18.4 | 64 | 11.07 | 84 |
50 | 2 | 19.0 | 19.2 | 83 | 12.09 | 102 |
65 | 2.1/2 | 23.6 | 28.9 | 95 | 15.29 | 121 |
80 | 3 | 25.9 | 30.5 | 106 | 16.64 | 146 |
100 | 4 | 27.7 | 33.0 | 114 | 18.67 | 152 |
备注：
(*) Dimension B is minimum length of perfect thread.The Length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2(effective length of external thread)required by American National Standard for pipe threads (ANSI/ASME B1.20.1).
