公称通径 Nominal Size		承插孔径 Socket Bore Dia.	承插孔壁厚 Socket Wall Thickness C(1)		流量孔径 Bore Dia. Of Fittings	中心至承插孔底 Center to Bottom of Socket	承插孔深度 Depth of Socket
DN	NPS	B(2)	(Avg)	(Min)	D(2)	A(2)	J (Min)
3000Lb
6	1/8	10.8	3.18	3.18	6.9	11	9.5
8	1/4	14.2	3.78	3.3	9.3	11	9.5
10	3/8	17.6	4.01	3.5	12.6	13.5	9.5
15	1/2	21.8	4.67	4.09	15.8	15.5	9.5
20	3/4	27.2	4.90	4.27	21.0	19	12.5
25	1	33.9	5.69	4.98	26.7	22.5	12.5
32	1.1/4	42.7	6.07	5.28	35.1	27	12.5
40	1.1/2	48.8	6.35	5.54	40.9	32	12.5
50	2	61.2	6.93	6.04	52.5	38	16.0
65	2.1/2	73.9	8.76	7.67	62.7	41	16.0
80	3	89.8	9.52	8.30	78.0	57.0	16.0
100	4	115.2	10.69	9.35	102.3	66.5	19.0
6000Lb
6	1/8	10.8	3.96	3.43	4	11	9.5
8	1/4	14.2	4.6	4.01	6.4	13.5	9.5
10	3/8	17.6	5.03	4.37	9.2	15.5	9.5
15	1/2	21.8	5.97	5.18	11.8	19	9.5
20	3/4	27.2	6.96	6.04	15.6	22.5	12.5
25	1	33.9	7.92	6.93	20.7	27	12.5
32	1.1/4	42.7	7.92	6.93	29.5	32	12.5
40	1.1/2	48.8	8.92	7.80	34.0	38	12.5
50	2	61.2	10.92	9.50	42.9	41	16.0
9000Lb
15	1/2	21.8	9.35	8.18	6.4	25.5	9.5
20	3/4	27.2	9.78	8.56	11.1	28.5	12.5
25	1	33.9	11.38	9.96	15.2	32	12.5
32	1.1/4	42.7	12.14	10.62	22.8	35	12.5
40	1.1/2	48.8	12.70	11.12	28.0	38	12.5
50	2	61.2	13.84	12.12	38.2	54	16.0

(1) Average of socket Wall Thickness around periphery shall be no less than listed values.The minimum values are permitted in localized areas.

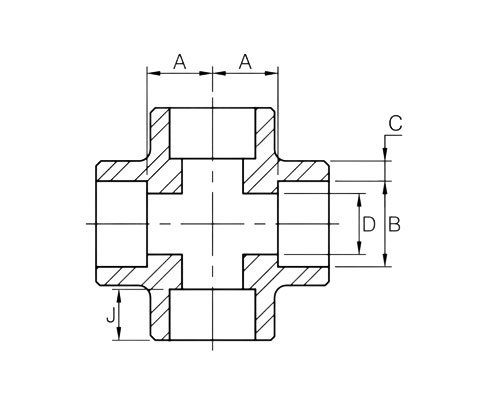

承插焊四通 | Socket Weld Cross
